1/16 &Quot; Od (1/32 &Quot;Id) Hard Wall Tubing Compression Fittings With Ferrules (Package Of Six), Each

Details:

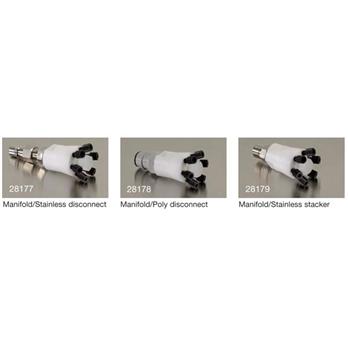

The hplc poly manifold enables up to six waste lines (per manifold) from hplc processes to be fed into a single intake fitting. Manifolds have six 1/4-28 ports and one 3/8 " npt port (all come with caps for unused ports) and either one quick disconnect in no. 316 Stainless steel or polypropylene, or a no. 316 Stainless steel stacker connector. The six ports are tapped to accommodate the 1/4-28 threads of the separately available compression fittings.The compression fittings, sold in sets of six, accommodate tubing sizes of either 1/16 " and 1/8 " od. The fittings are approximately 1 " long and made of tefzel™. They include ferrules for a compression fit to the waste line.Manifold #28179 has a "stacker " connection enabling it to attach on top of a #28177 or 28178 and allowing up to a total of 12 waste lines to be fed into the disposal can. Multiple manifolds may be used on a custom-designed quick disconnect container as long as one disconnect remains unused to permit venting and prevent back pressure.&Nbsp;safety can with manifold installed is osha complaint and meets nfpa code 30.
