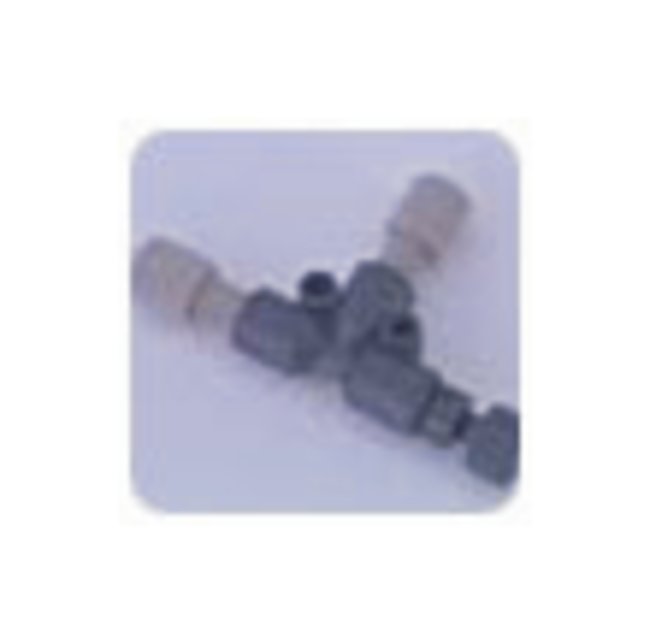

Micro-Metering And Micro-Splitter Valves: Micro-Metering Valve, Offer The Ability To More Finely Control Fluid Flow Rates, Each

Details:

Both metering and splitter valves availablechemically compatible constructionship complete with fittings micro-metering valvescan reduce outgoing flow to as low as 3.5μL per minuteneedle valves are perfect for use with peristaltic pump fluid-transfer applications, mass spectrometry, and fraction collection can also be used to regulate gas flow in helium sparging lines and as a flow-dependent variable back-pressure regulator material: peek™, blacko.D. Tubing: 1/8 in.Thru-hole: 0.020 In. (0.50Mm)internal volume: 7.7μL (max., With valve fully open)includes: (2) xp-330flow rates as low as 3.5μL/min. (At 1ml/min. Incoming flow rate w/ room-temperature water)1/4-28 flat-bottom port configurationflow path materials are peek™ polymer and ptfemicro-splitter valves: medium pressureaccurately split and control a low-flow stream from a single incoming supplybiocompatible medium pressure micro-splitter valves (05-700-383, -384) are perfect for lc-ms and other multi-detector systems, fraction collectors and post column reactionsideal placement of these valves is on effluent side of detector flow cell, at maximum pressure of 800 psi (55 bar)choose between 1/4-28 and 10-32 threaded versionsmicro-splitter valves: high pressuredesigned to operate under pressures up to 4,000 psi (276 bar)well suited for running two analytical devices in parallelstandard versions will connect 1/16 in. O.D. Tubing to each of the three available portsstainless-steel needle is inside the valve† the maximum internal volumes listed in the chart are with the valve fully open.
